Spacesaver Staircases

What is a Space Saver Staircase?
A Space Saver Staircase is a Staircase that has alternating treads allowing you to get up a flight of stairs in
approximately half the going distance of a normal flight of stairs.

Very popular for Loft conversions where space is of a premium.

Model Range and Costs?
Stairplan offer four standard specification models when it comes to Space Savers:-

The Space Saver Kits - 32mm Engineered Pine Strings, 30mm MDF Treads and 9mm plywood risers.
Flat pack £249.00 + VAT Order the Spacesaver Stair Kit Online
13 Risers. Floor to Floor rise options from 2500 to 2700mm, Width 650mm,Going 1460mm,.

The Budget Space Saver - 32mm Engineered Pine Strings, 30mm MDF Treads and 9mm plywood risers.
Assembled £299.00 + VAT (Up to 13 Risers)
Flat pack £249.00 + VAT (Up to 13 Risers)
Standard Price covers Staircase options up to 13 risers, Wide range of floor to floor options, Widths 600mm, 650mm, 700mm 750mm and 800mm, Going 1460mm
Additional Risers £50.00 + VAT each
Going on 14 Riser Budget Space Saver 1570mm
Going on 15 Riser Budget Space Saver 1680mm

Order a Budget Space Saver Staricase Online

The Birch 24 Space Saver - 32mm Engineered Pine Strings, 24mm Birch Plywood Treads and 9mm Birch plywood risers.
Assembled - £460.00 + VAT
Flat pack - £410.00 + VAT
Standard Price covers Staircase options up to 13 risers, Wide range of floor to floor options, Widths 600mm, 650mm, 700mm 750mm and 800mm, Going 1460mm
Additional Risers £50.00 + VAT each (
Going on 14 Riser Budget Space Saver 1570mm
Going on 15 Riser Budget Space Saver 1680mm

Order a Birch 24 Spacesaver Staircase Online

The Beech 40 Space Saver - 40mm Engineered Beech Strings, 40mm Engineered Beech Treads and 18mm Engineered Beech risers .
Assembled £899.00 + VAT We can supply this flatpack if required
Standard Price covers Staircase options up to 13 risers, Wide range of floor to floor options, Widths 600mm, 650mm, 700mm and 750mm, Going 1470mm
Additional Risers £50.00 + VAT each
Going on 14 Riser Budget Space Saver 1580mm
Going on 15 Riser Budget Space Saver 1690mm

Order a Beech 40 Spacesaver Staircase Online

Carpet inserts are available for the Birch 24 and Beech 40 models at £10.00 + VAT per tread. This incudes machining the recess in to the Tread and a Carpet insert from our standard colour range. - Spacesaver Carpet Insterts Colour Range

Handrails
Wall Handrails in Pine From £28.99 + Vat
New Pine Handrail option - £200.00 + VAT

European Style Handrail - Beech with Stainless steel Balusters £350.00 + VAT

90º Landing options are available at extra cost, but the most cost effective option is to order your space saver staircase in 2 sections as required and build your own landing platform. Quarter Landing Spacesaver staircases

Note - The Budget, Birch 24 and Beech 40 Spacesaver staircase options above are constructed using traditional staircase methods with the treads and the risers housed into the strings producing a quality staircase.

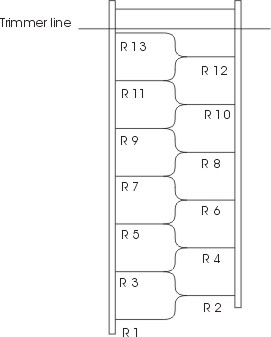

space saver staircase drawing

On the left you can see a typical plan layout of a space saver staircase with 12Nº risers
The going space required for a 12 riser space saver staircase is 1350mm from the trimmer line to the face of the bottom nosing.

You can work out the total length by multiplying the number of risers your flight requires by 110mm (this gives you the 220mm Minimum Going size required by Building Regulations)and adding 20mm for the nosing overlap plus the thickness of a riser (between 9 & 18mm depending on model).

Our standard width is 650mm. If you require a different width we can make them to your required width.

All our Space savers are purpose made and are usualy manufactured in 2 weeks.


Note - Our Space Saver staircases are manufactured to suit your Floor to Floor measurement, this is required to give you equal riser heights up the total staircase in order to comply with Building Regulations. Our Space saver staircases also comply with the 100mm sphere rules set out in the building regulations. Check that any other staircases you are considering comply with building regulations.


Pine space saving loft staircase with mdf stair treads

Left - The Budget Spacesaver staircase
assembled .
We offer these Made to measure.
The staircase is manufactured with
Engineered Pine Strings.
30mm MDF Treads.
9mm Plywood Risers
.
This staircase is also available "Flatpack"



Right - The Birch 24 Spacesaver staircase
assembled
We offer this staircase made to measure
The staircase is manufactured with
Engineered Pine Strings.
24mm Birch Plywood Treads.
9mm Birch Plywood Risers.
This staircase is also available "Flatpack"



Both of these space saver staircases have
a very sturdy structure and are very quick to
install.

premium Birch 24 space saving loft staircases
diy loft staircase kits Left - The Spacesaver Kit this is a low cost option for a space saver
staircase we offer these with a standard width of 650mm and we will
make it to a rise height of between 2500mm and 2700mm

The staircase is manufactured with
Engineered Pine Strings.
22mm MDF Treads.
9mm Plywood Risers.
This staircase is only available "Flatpack" .
ultimate Beech 40 loft staircase solution staircase Left - The Beech 40 spacesaver staircase
shown here with the optional carpet inserts
this is the class leader in space saver staircases.
Available made to measure.
The staircase is manufactured with
40mm Steamed Beech Strings.
40mm Steamed Beech Treads.
9mm Beech faced Plywood Risers.
      Stainless steel stair balusters with the european style handrail


Right - The European Handrail system is a
option on the Beech 40 spacesaver.

Openplan Style

Oak Spacesaver ?

Quarter Landing Turn ?



module mini stair kits

The Module Mini kit

see also - Karina stair Kit

loft ladders Loft Ladders ?
